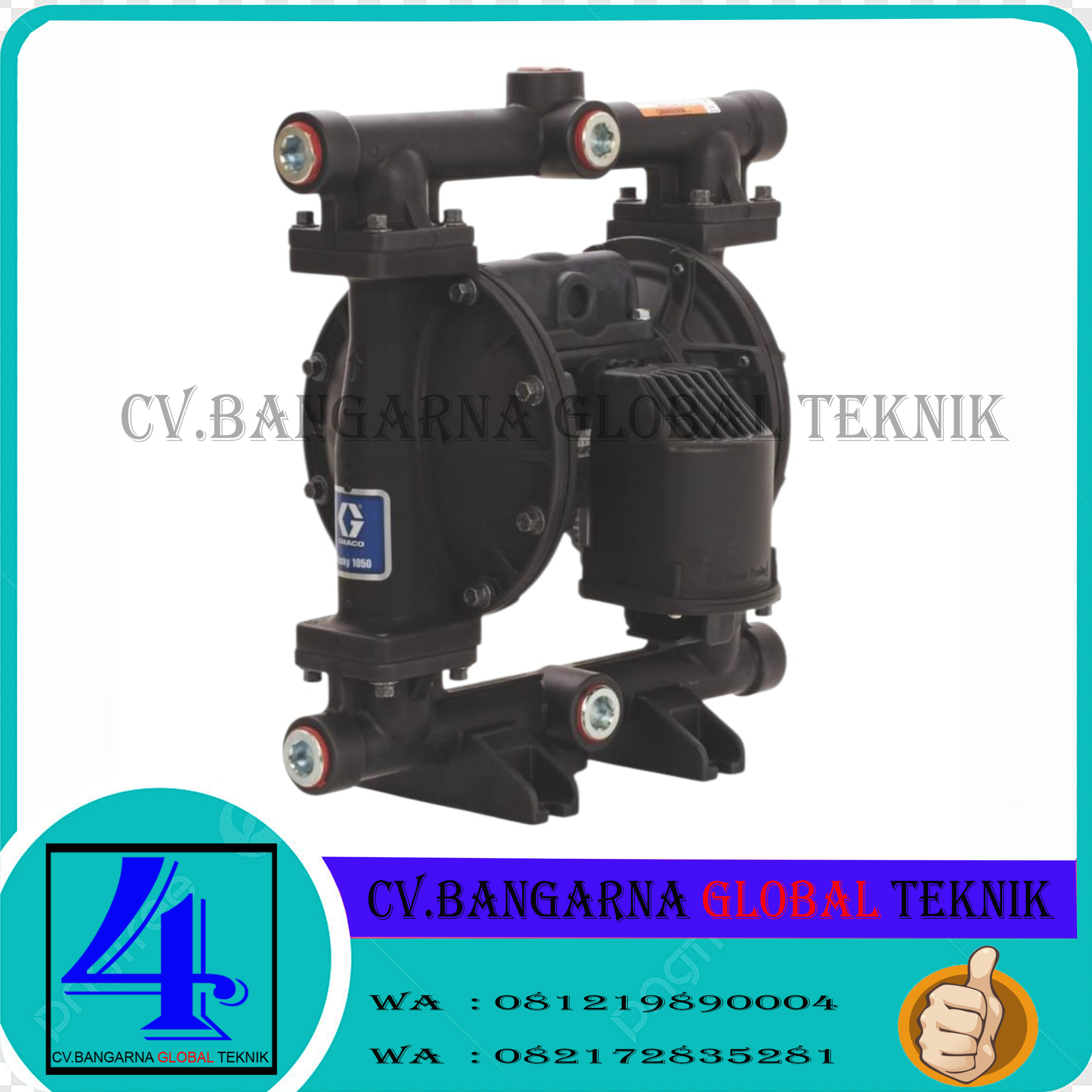

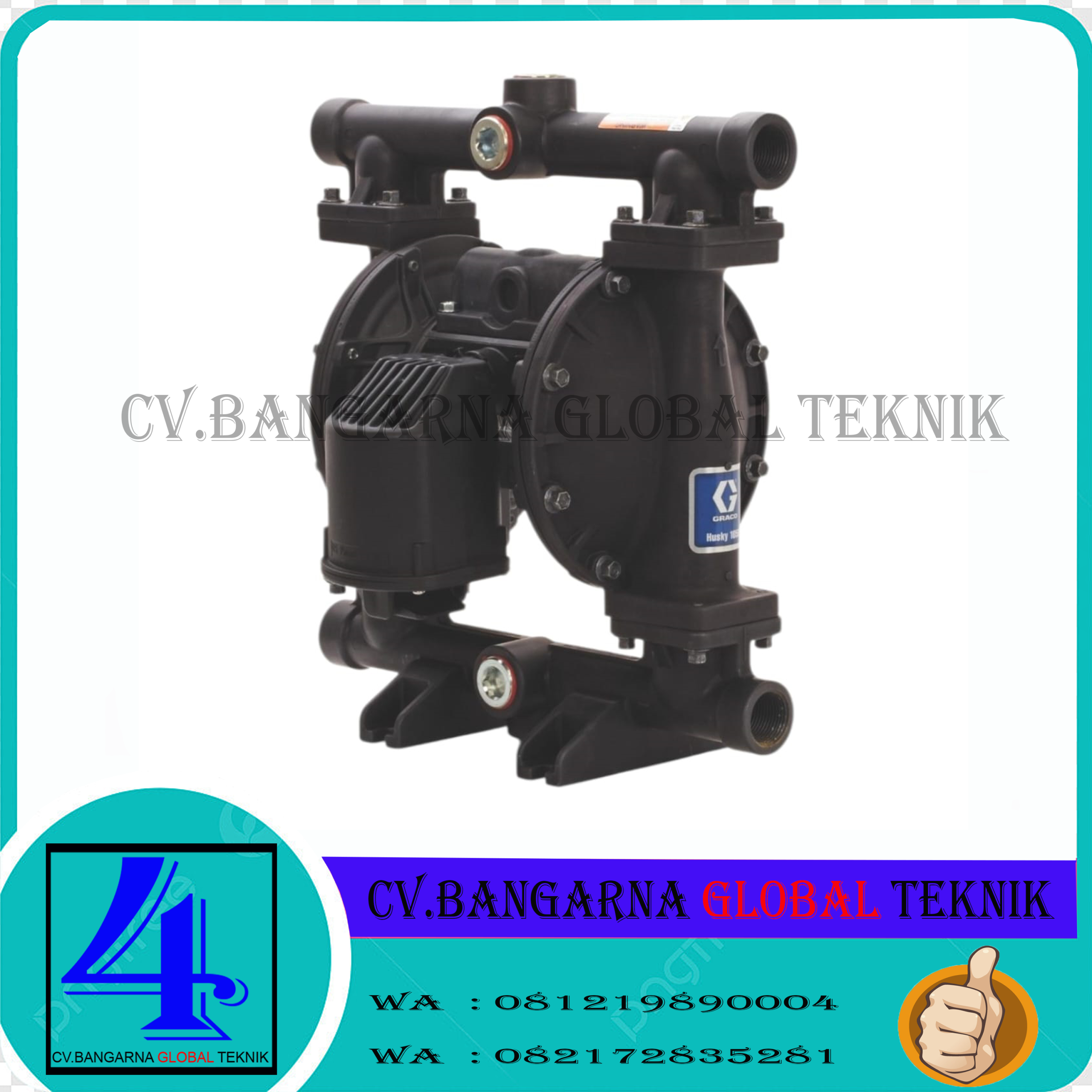

GRACO DIAPHRAGM PUMP PN 647016 HUSKY 1050 TRANSFER PUMP FUEL TRANSFER

GRACO Husky 1050 Air-Operated Double Diaphragm Transfer Pump – 1 in. AL/TPE for Water, Antifreeze, and Fuel Transfer
Part Number: 647016

Technical specifications:
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female NPT
Air Inlet Size (in) 1/2
Application Industrial
Ball Material Acetal
Center Section Material Aluminum
Compatible Material Water, Antifreeze, Fuel
Connection Type Threaded
Diaphragm Material TPE (Hytrel)
Fluid Inlet Size & Outlet Size (in) 1 Female NPT
Fluid Section Material Aluminum
For Use With Water / anti-freeze / fuel transfer
Manifold O-Ring Material None
Material Aluminum
Maximum Air Consumption (SCFM) 25
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 280
Maximum Flow Rate (GPM) 50
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°F) 150
Maximum Solid Size (in) 0.125
Model Husky
Overall Height (in) 15.9
Power Source Air
Seat Material TPE (Hytrel)
Standards Met UL
Type Pneumatic Diaphragm Pump
Wetted Material Aluminum, TPE, Acetal
