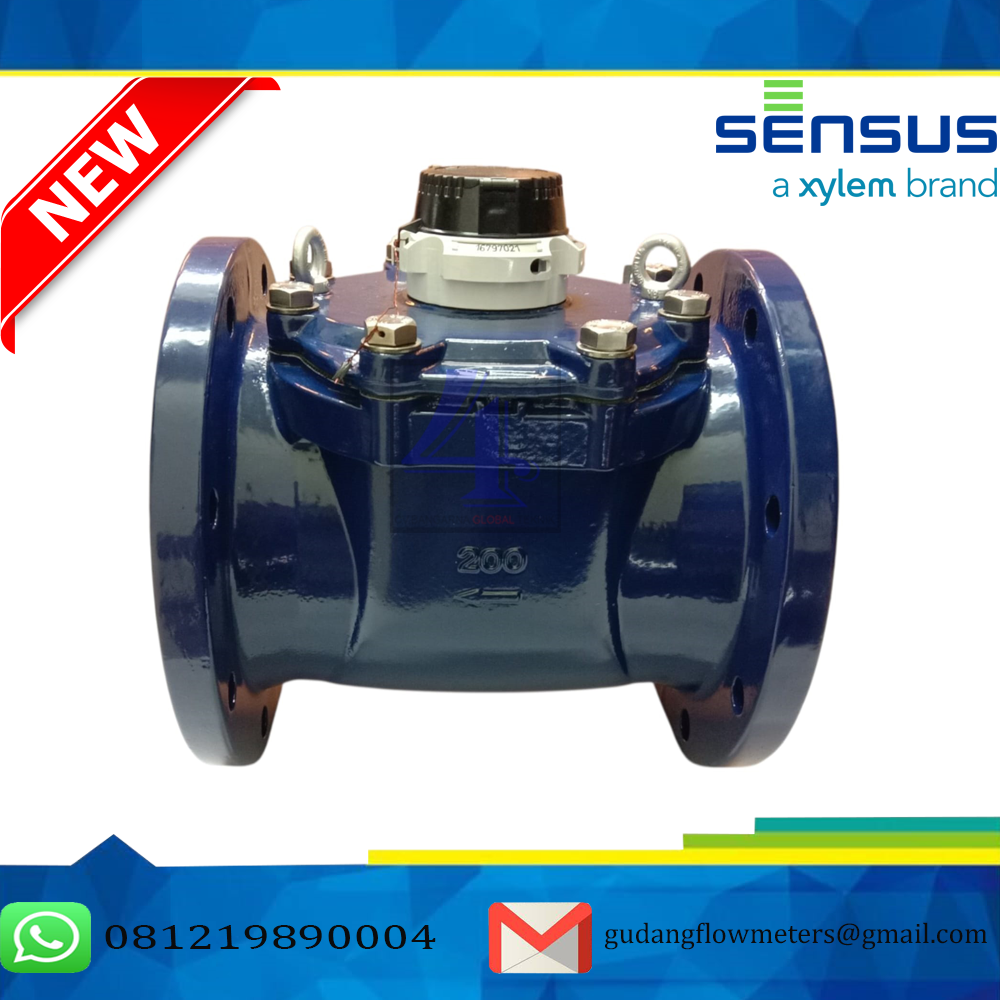

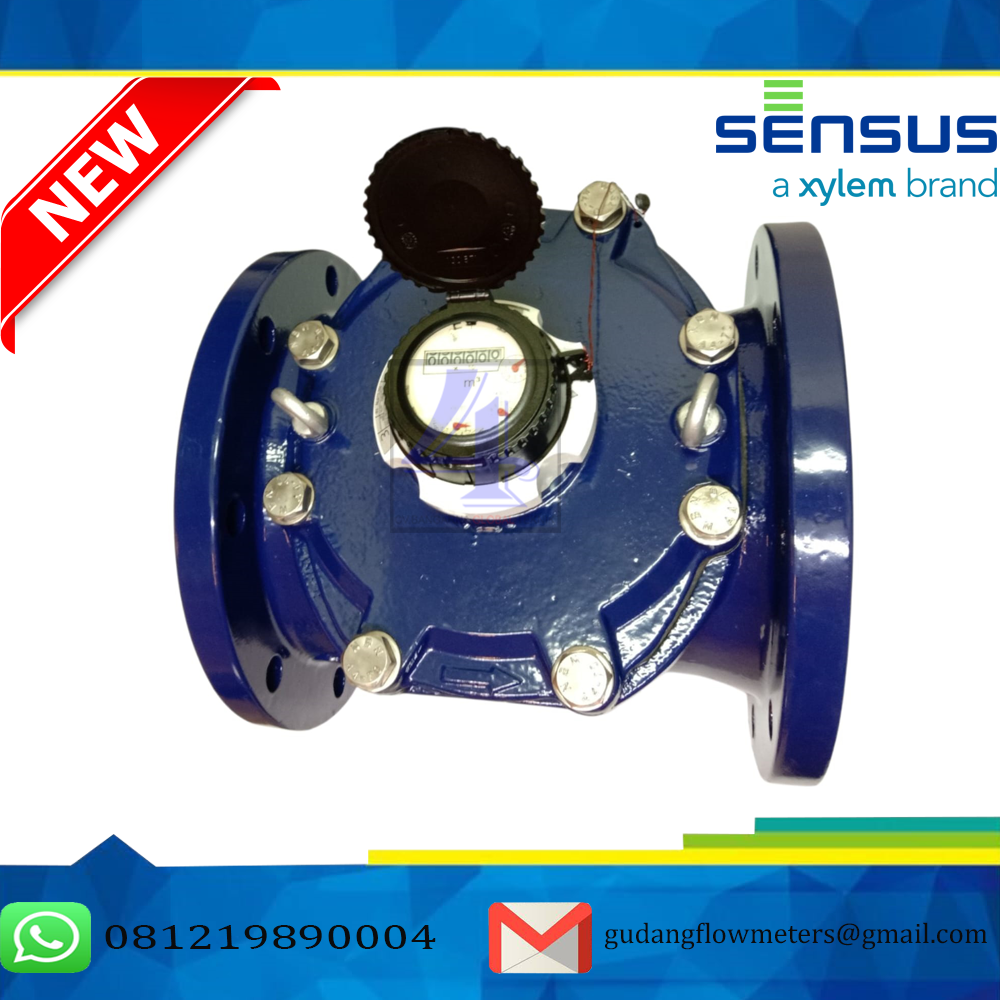

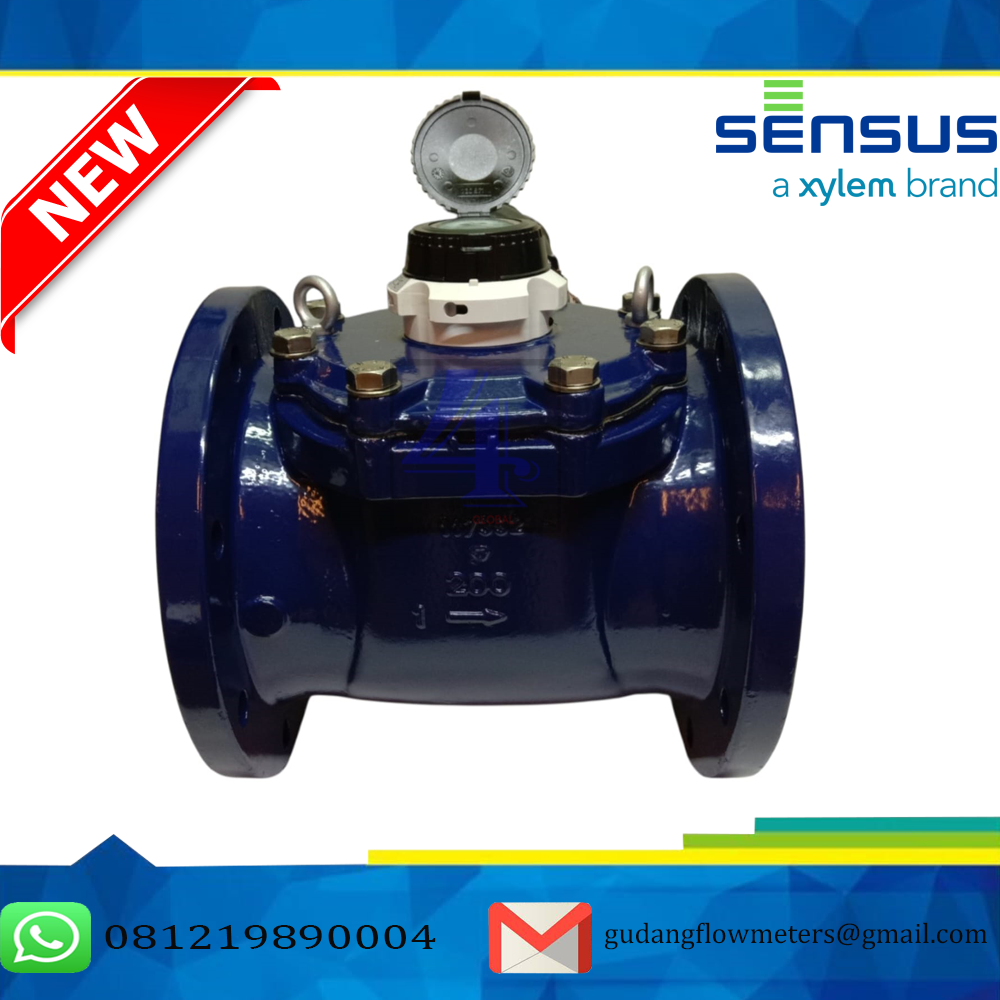

Jual Meteran Air Merk SENSUS Size 8″ DN200mm | Type Wp-Dynamic Flange Pn16

Application :
Measurement of high, relatively constant
flow rates, e.g. behind pumps
For industrial, non-commercial use
Application for aggressive media (BMF), e.g.
• Desalinated / demineralized water
• Caustic soda up to 20 %
• Saline water up to 10 %
• Chlorinated water up to 1 %
• Glycol-water solutions up to 30 %
• Caustic solutions up to ph value 9

Technical Specification :
• Meter Size : 8 Inch ( DN 200 mm )
• Type : WP-Dynamic
• Max.Pressure : PN16
• Temperature : 50c
• Size of meter (acc. to PTB-A22) Qn : 250
• Maximum peak flow (few minutes) +/-2% ( Qmax ) : 1200 m3/h
• Continuous flow +/-2% ( Qn ) : 800 m3/h
• Transitional flow ±2% ( Qt ) : 6.0 m3/h
• Minimum flow ±5% ( Qmin ) : 4.0 m3/h
• Starting flow : 1.0 m3/h
