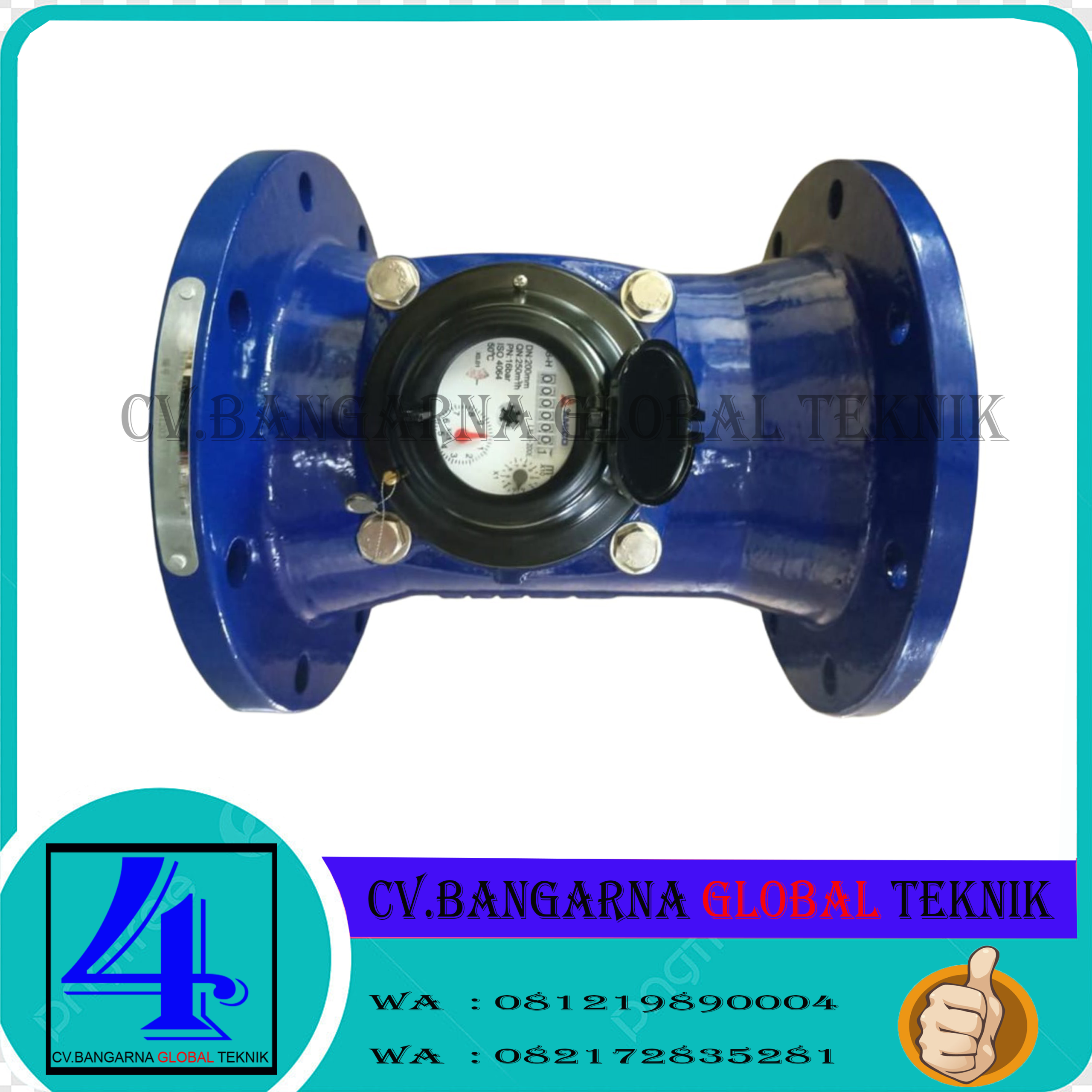

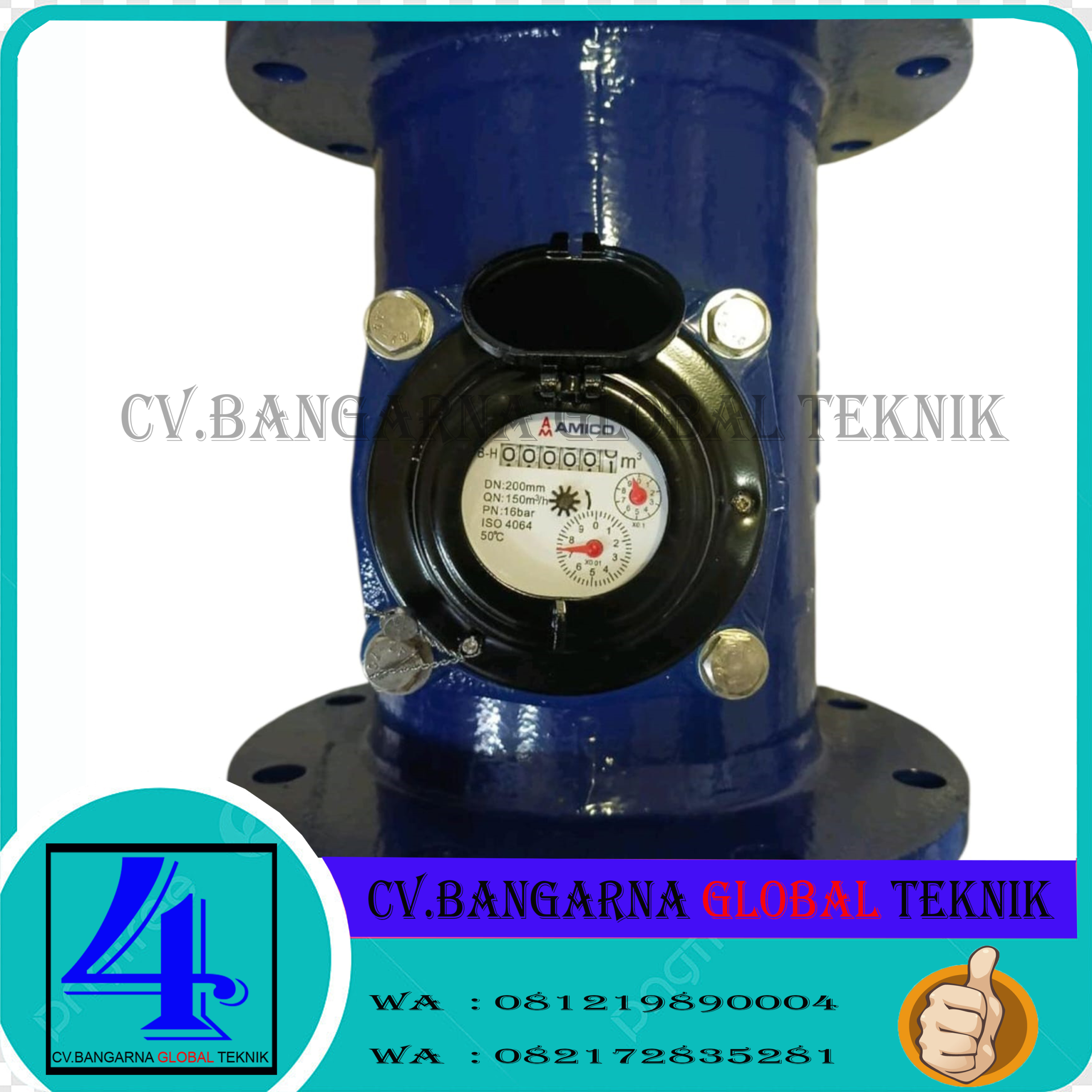

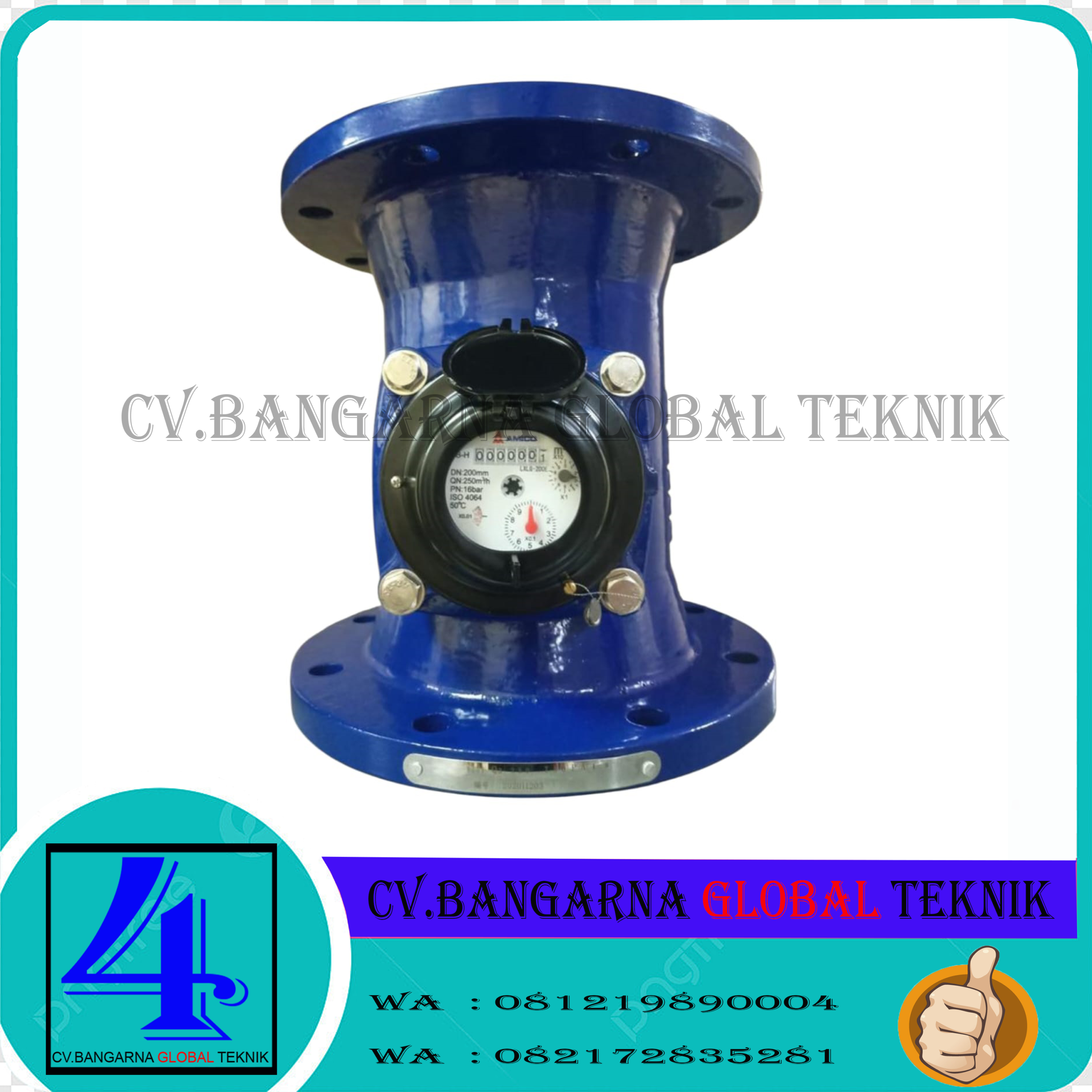

Jual Meteran Air Size 8″ | Merk AMICO | LXLG-200E Koneksi Flange PN16

Jual Meteran Air Size 8″ | Merk AMICO | LXLG-200E Koneksi Flange PN16

Water Meter air bersih/dingin
Merk : Amico
Model : LXLG-200E
Size : 8″ Inch DN200
Specfications :
Nominal Flow (Qn) : 250 m3/h
Overal Length (L) : 350 m3/h
Class : B
Maximum Flow (Qmax) : 650 m3/h
Maximum Flow (Constant) : 325 m3/h
Transitional Flow (Qt) : 20 m3/h
Minimum Flow (Qmin) : 6.5 m3/h
Flowrate With 0.1 Bar Head Loss : 650 m3/h
Head Loss At Qmax : 0.05 Bar
Accuracy Within (Q1) : 5%
Accuracy Within (Qa) : 2%
Working Pressure : ≤10 Bar
Max. Water Pressure : ≤50°C

Note :
– garansi servis 6 bulan
– Harga & Stock tidak selalu mengikat
